Example tech packs

See a tech pack page by page before you order one.

Three example packs drawn by our team in the exact format we deliver: flats, points of measure with tolerances, bill of materials, construction notes and a revision log. Below them, example pages from real tech packs, with every brand name removed.

Drawn examples, not client ordersReal pages, brand removed

Get a quote for your tech pack Order single style · $299
Open the example packs

Free quote · Reply within 24h · Flat fee per style · No cut of your production

Vest tech pack page with front and back flats, stitch callouts, a graded measurement table in inches, a bill of materials and color referencesExample page, brand removed
Example page: vest flats with graded measurements and bill of materials
Hands pointing at printed flat sketches and color swatch strips on a white tableOverhead view of designers at a round table with printed flats and a sweatshirt sample

Studio work: marking up printed flats; flats next to the sample.

Three example packs

Open a pack. Read it like a factory would.

Three tech packs drawn by our team to show the format: a crewneck tee, a pullover hoodie and 5-pocket jeans. Each has five pages: cover, flats, points of measure in three sizes, bill of materials, and construction with a revision log.

EX-01_tee_tech-pack.pdfPage 1 / 5

Example, not a client order

Crewneck tee

Tech pack drawn by the GarmentSpec team to show the format. Example values.

Style no.
EX-01
Category
Knit / jersey
Size range
S–XL
Base size
M
Units
cm
Fabric
100% cotton single jersey, 180 gsm
Colorways
1 (white)
Revision
B
ABCDEF

EX-01 · Crewneck teePage 1 / 5 · CoverRev BExample, not a client order

Front
ABCDEF
Back

Red balloons match the points of measure on page 3. Dashed lines are stitch lines.

EX-01 · Crewneck teePage 2 / 5 · FlatsRev BExample, not a client order

Points of measure, cm, measured flat. Example values.
POMDescriptionSMLTol ±
ABody length from HPS70.072.074.01.0
B½ chest, 2.5 cm below armhole51.054.057.01.0
CSleeve length from shoulder point20.021.022.00.5
DNeck width, seam to seam18.018.519.00.5
EFront neck drop from HPS9.09.510.00.5
F½ hem width50.053.056.01.0

EX-01 · Crewneck teePage 3 / 5 · Points of measureRev BExample, not a client order

Bill of materials. Example values; the brand confirms suppliers.
ItemMaterial / specPlacementQty
Body fabric100% cotton single jersey, 180 gsm, reactive dyedBody, sleeves1
Neck rib1×1 rib, 95% cotton 5% elastaneNeckline1
ThreadPolyester core-spun, tone to bodyAll seamsPer garment
Main labelWoven, 5 × 2 cm, foldedCenter back neck1
Care labelPrinted satin, content + careLeft side seam, 10 cm above hem1

EX-01 · Crewneck teePage 4 / 5 · Bill of materialsRev BExample, not a client order

Construction and finishing

  1. Neck: 2 cm finished rib, 4-thread overlock, twin-needle coverstitch on the body side.
  2. Shoulders: 4-thread overlock with clear shoulder tape.
  3. Sleeves and side seams: 4-thread overlock, one continuous seam.
  4. Hems: 2.5 cm turn-up, twin-needle coverstitch at sleeve and body.

Revision log

RevChange
AInitial issue for quotation.
B½ chest reduced 1.0 cm in all sizes after fit sample.

EX-01 · Crewneck teePage 5 / 5 · ConstructionRev BExample, not a client order

EX-02_hoodie_tech-pack.pdfPage 1 / 5

Example, not a client order

Pullover hoodie

Tech pack drawn by the GarmentSpec team to show the format. Example values.

Style no.
EX-02
Category
Fleece
Size range
S–XL
Base size
M
Units
cm
Fabric
80% cotton 20% polyester brushed fleece, 320 gsm
Colorways
2 (black, grey marl)
Revision
B
ABCDEF

EX-02 · Pullover hoodiePage 1 / 5 · CoverRev BExample, not a client order

Front
ABCDEF
Back

Red balloons match the points of measure on page 3. Dashed lines are stitch lines.

EX-02 · Pullover hoodiePage 2 / 5 · FlatsRev BExample, not a client order

Points of measure, cm, measured flat. Example values.
POMDescriptionSMLTol ±
ABody length from HPS68.070.072.01.0
B½ chest, 2.5 cm below armhole56.059.062.01.0
CSleeve length from shoulder point62.063.565.01.0
DHood height from HPS36.037.038.00.5
EHood width, flat25.025.526.00.5
FHem rib height7.07.07.00.3

EX-02 · Pullover hoodiePage 3 / 5 · Points of measureRev BExample, not a client order

Bill of materials. Example values; the brand confirms suppliers.
ItemMaterial / specPlacementQty
Body fabric80/20 cotton polyester fleece, brushed back, 320 gsmBody, sleeves, hood, pocket1
Rib2×2 rib, 95% cotton 5% elastaneCuffs, hem1
DrawcordFlat cord, 10 mm, tone to body, metal tipsHood channel1
EyeletsMetal, 10 mm, matte blackHood front, 2.5 cm from CF2
ThreadPolyester core-spun, tone to bodyAll seamsPer garment
Main labelWoven, 5 × 2 cmCenter back neck1

EX-02 · Pullover hoodiePage 4 / 5 · Bill of materialsRev BExample, not a client order

Construction and finishing

  1. Hood: 3-panel, center panel flatlocked; 2.5 cm drawcord channel, single-needle topstitch.
  2. Pocket: kangaroo pocket, openings bound, bar tacks at both top corners.
  3. Cuffs and hem: rib attached with 4-thread overlock, coverstitched on the body side.
  4. Armholes and side seams: 4-thread overlock.

Revision log

RevChange
AInitial issue for quotation.
BPocket moved up 2.0 cm; eyelet spacing fixed at 5.0 cm.

EX-02 · Pullover hoodiePage 5 / 5 · ConstructionRev BExample, not a client order

EX-03_jeans_tech-pack.pdfPage 1 / 5

Example, not a client order

5-pocket jeans

Tech pack drawn by the GarmentSpec team to show the format. Example values.

Style no.
EX-03
Category
Denim
Size range
28–36
Base size
32
Units
cm
Fabric
100% cotton rigid denim, 12 oz, rinse wash
Colorways
1 (indigo rinse)
Revision
B
ABCDE

EX-03 · 5-pocket jeansPage 1 / 5 · CoverRev BExample, not a client order

Front
ABCDE
Back
F

Red balloons match the points of measure on page 3. Dashed lines are stitch lines.

EX-03 · 5-pocket jeansPage 2 / 5 · FlatsRev BExample, not a client order

Points of measure, cm, measured flat. Example values.
POMDescription303234Tol ±
A½ waist, top edge, relaxed39.041.544.01.0
BFront rise incl. waistband27.027.528.00.5
CInseam81.081.081.01.0
D½ thigh, 2.5 cm below crotch30.031.032.00.5
E½ leg opening18.018.519.00.5
FBack rise incl. waistband37.038.039.00.5

EX-03 · 5-pocket jeansPage 3 / 5 · Points of measureRev BExample, not a client order

Bill of materials. Example values; the brand confirms suppliers.
ItemMaterial / specPlacementQty
Shell100% cotton rigid denim, 12 ozBody1
Pocketing65/35 polyester cotton twillFront pockets1
Shank buttonMetal, 17 mm, antique brassWaistband CF1
RivetsMetal, 8 mm, antique brassFront pocket corners6
ZipMetal fly zip, antique brassFly1
ThreadCore-spun, contrast gold topstitchTopstitchingPer garment
Patch labelLeather-look, 7 × 5 cmBack waistband, right1

EX-03 · 5-pocket jeansPage 4 / 5 · Bill of materialsRev BExample, not a client order

Construction and finishing

  1. Inseam: felled; outseam: 4-thread overlock, single-needle topstitch.
  2. Back yoke and center back: felled, double topstitch.
  3. Back pockets: double topstitch, bar tacks at top corners.
  4. Hems: 1.5 cm chainstitch. All measurements taken after the rinse wash.

Revision log

RevChange
AInitial issue for quotation.
BRise and inseam reset after wash test shrinkage.

EX-03 · 5-pocket jeansPage 5 / 5 · ConstructionRev BExample, not a client order

Every page above is an example, not a client order. Measurements, fabrics and trims are example values chosen to show the format.

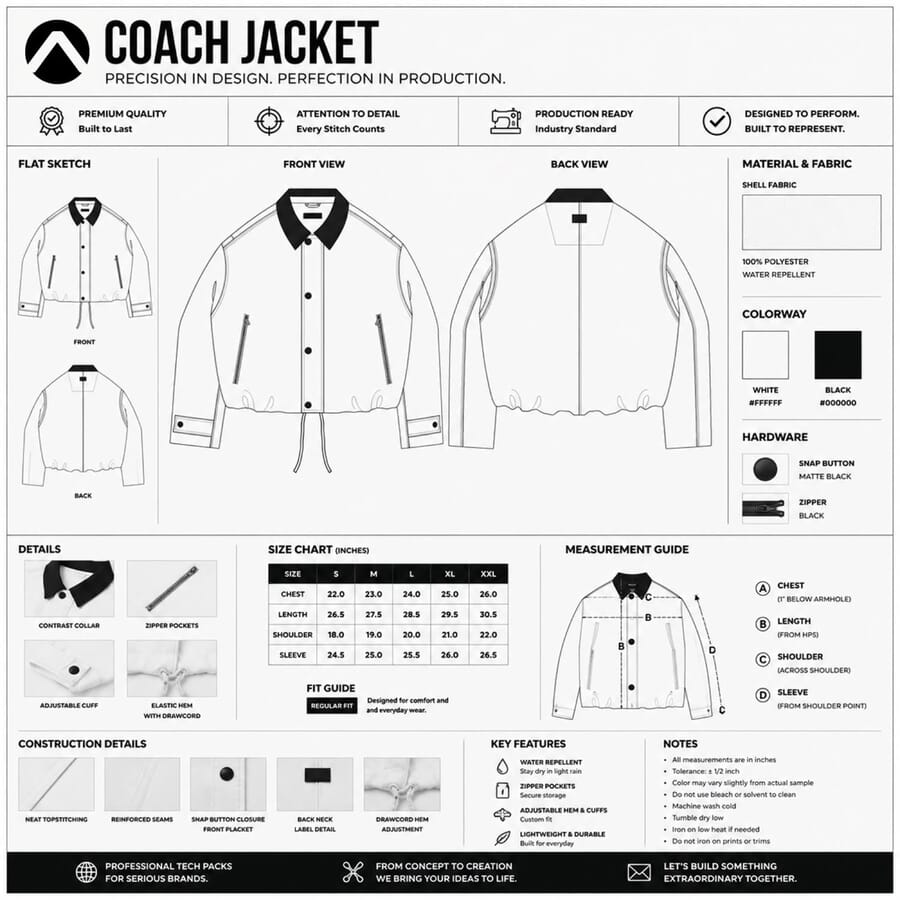

Example pages

Real tech pack pages, brand removed.

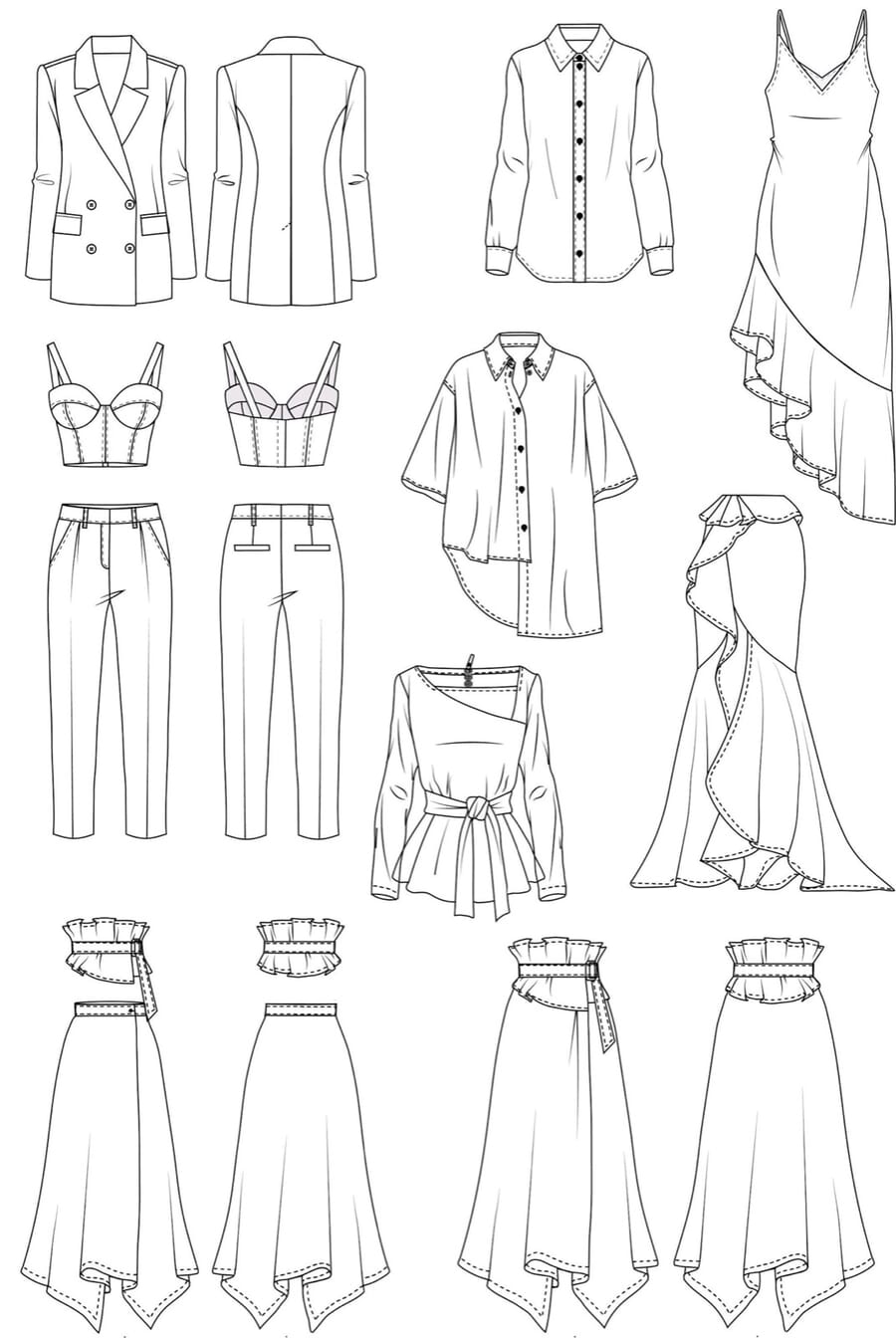

Flats, measurements, construction callouts, stitch legends and colorways from real tech packs. Every brand, studio and designer name is cropped out. Tap a page to see it larger.

  • Flats, three viewsExample page: front, side and back flats of an active tee

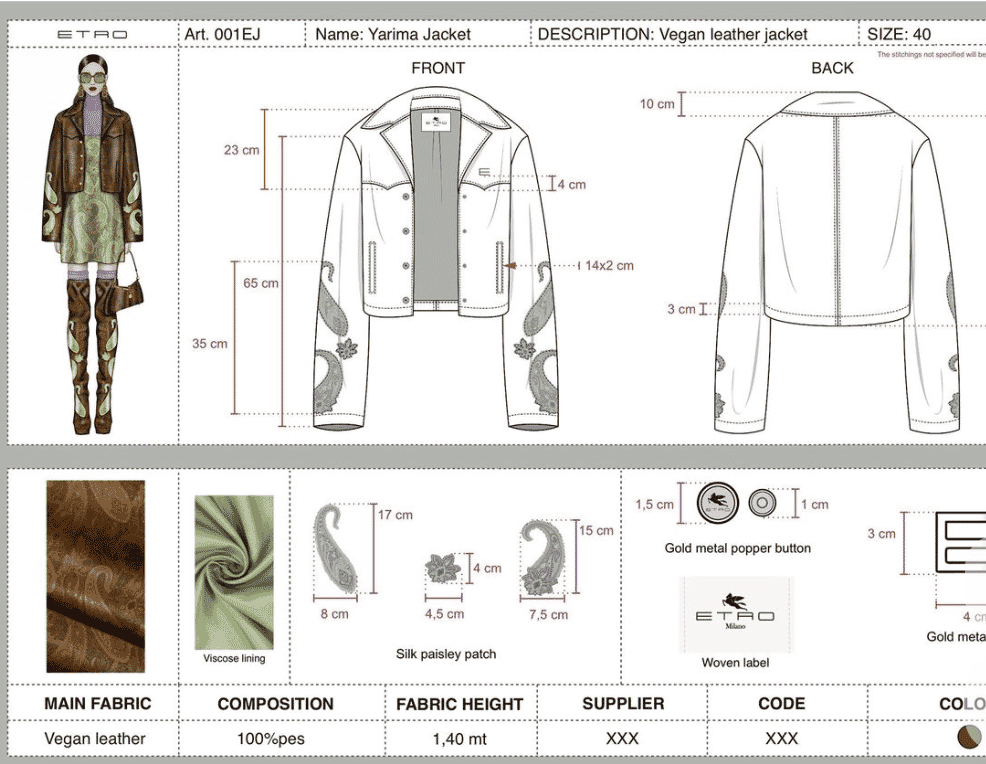

  • Flats with measurementsExample page: front and back flats of a cropped jacket with measurements
  • Construction calloutsExample page: denim jacket front and back flats with construction callouts

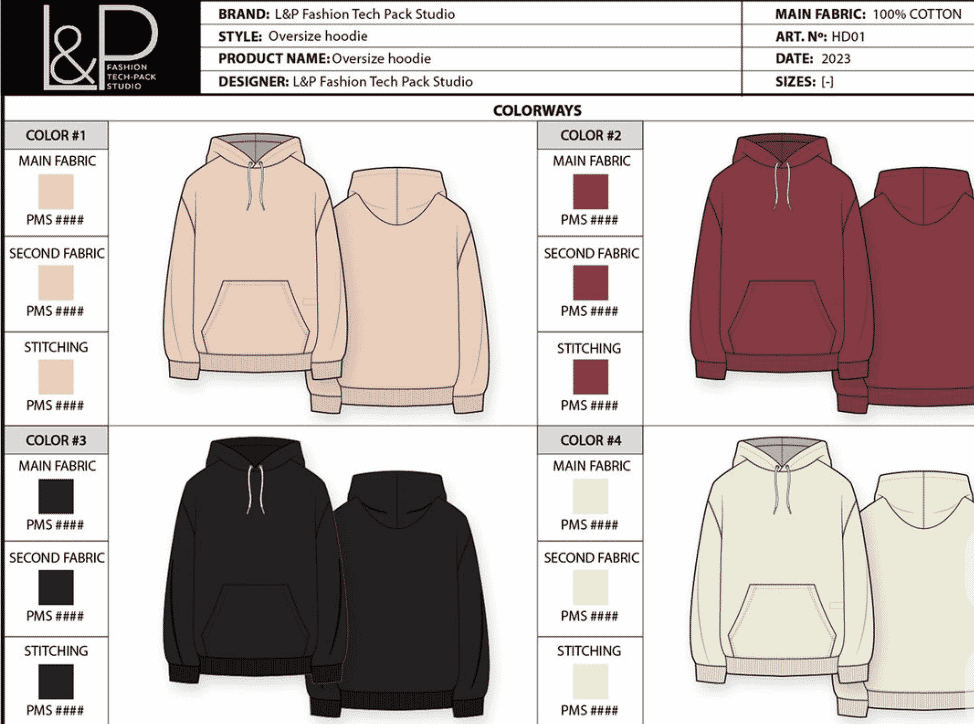

  • ColorwaysExample page: four colorways of a hoodie with fabric and stitching references

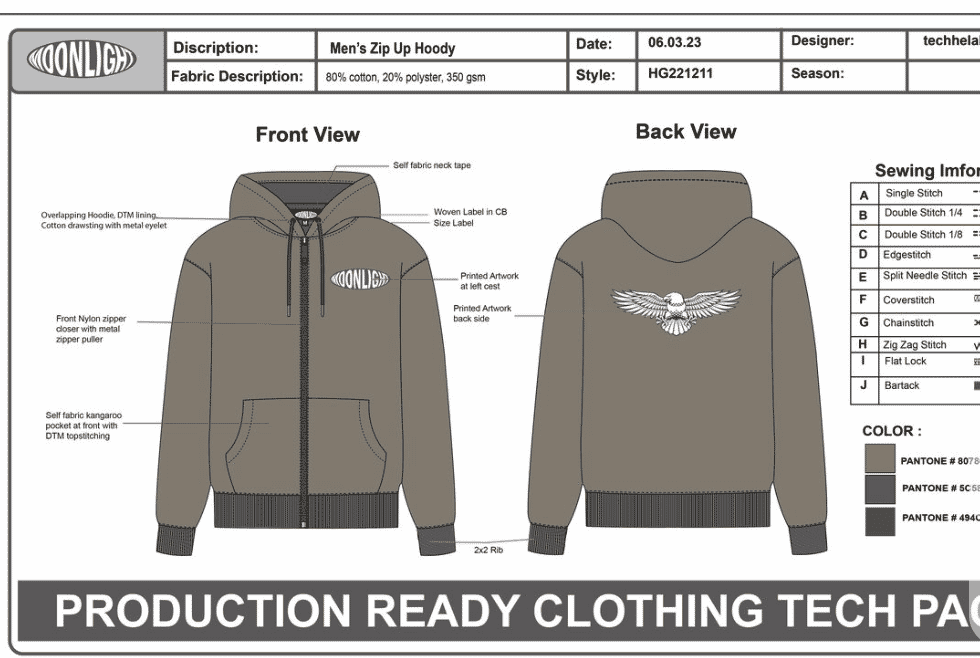

  • Stitch legend and colorExample page: hoodie back view with a stitch legend and color references

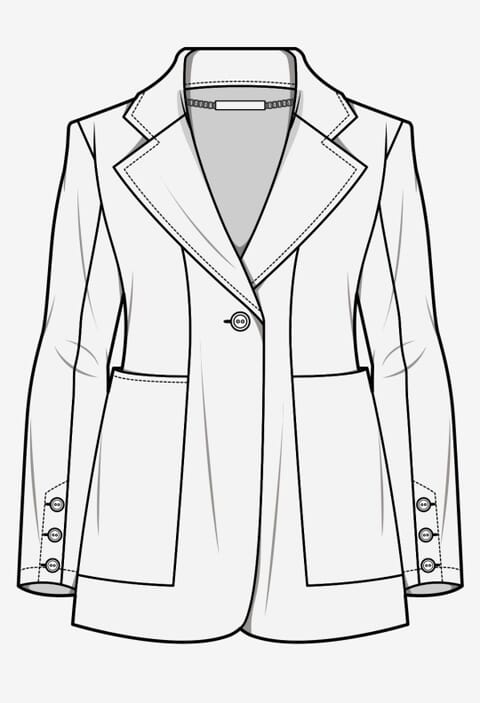

  • Flats with detail viewsExample page: blazer flats, front and back, with detail views and measurements
  • Colorway detailExample page: colorway detail of an open jacket (lining, sleeve and trims)
  • Stitch calloutsExample page: stitch callouts on a tee flat (construction)

Example pages, brand removed. Your tech pack carries your brand and your style names.

Get a quote for your tech pack How the tech pack service works

Before the pages

Flats start on the wall and the table.

Before a page is drawn cleanly, sketches get pinned up, compared with the sample and marked up. That is where the questions a factory would ask get answered.

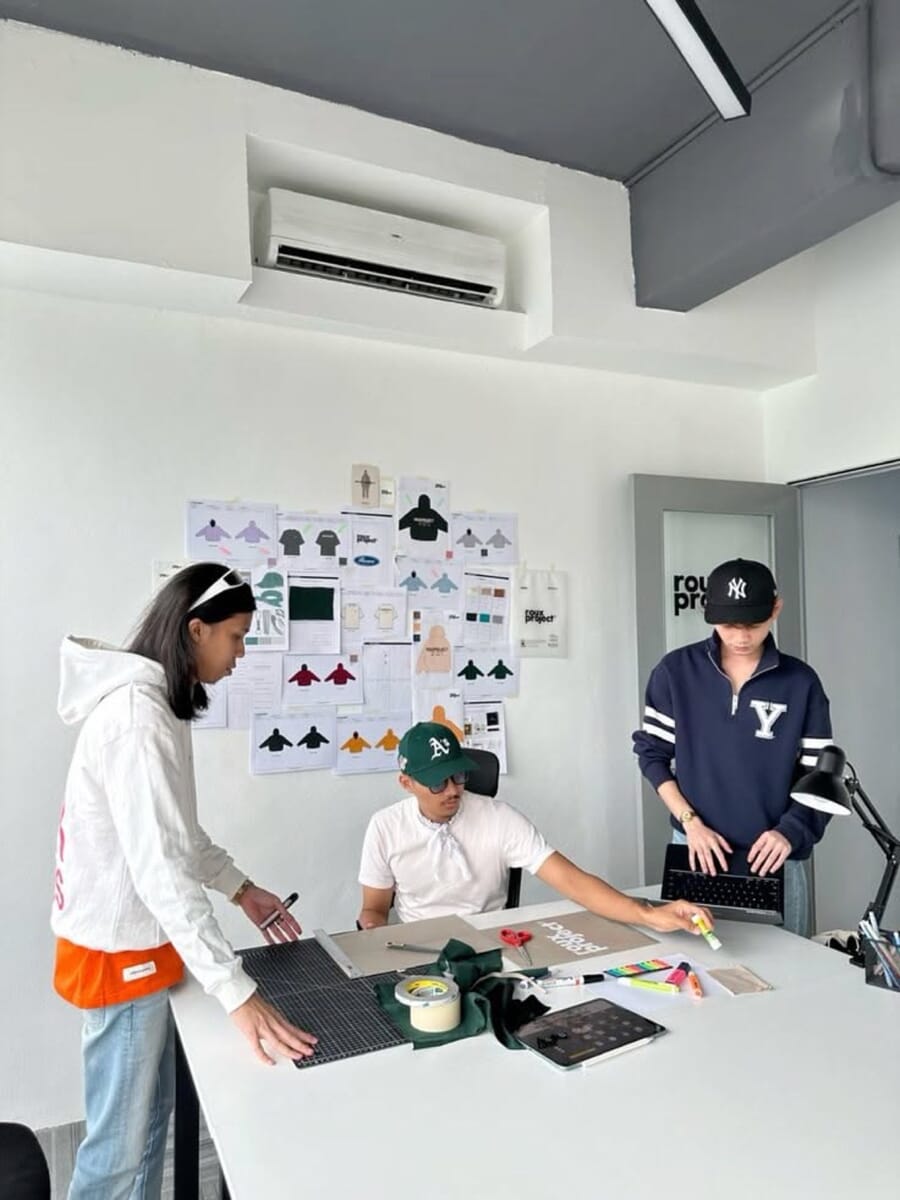

  • Team at a white table reviewing flat sketches and color swatches, with flats pinned on the wall
    Reviewing flats with swatches
  • Cork board with flat sketches, color cards and a shoe reference
    Flats on the cork board
  • Sketches and reference photos taped to a white studio wall
    Sketches taped up
  • Fashion sketches and fabric swatches pinned to a wall
    Sketches with swatches
  • Designer holding a coffee and tablet, pointing at sketches pinned on a wall
    Checking the line on the wall
Get a quote for your tech pack See pricing

Free quote · Reply within 24 hours · Flat fee per style · Studio team in the USA

What each page answers

Every page answers a question your factory would ask.

A factory quotes and sews from what is on the page. If a question is not answered there, it comes back to you by email, or the factory guesses.

  • 1Cover

    Which style, which sizes, which fabric?

    Style number, size range, base size, fabric and colorways in one title block.

  • 2Flats

    What does it look like from every side?

    Front and back line drawings, stitch lines dashed, every detail called out.

  • 3Points of measure

    How big in every size, and how far off is OK?

    Each measurement lettered on the flat, graded across sizes, with a tolerance.

123456
EX-01 crewneck tee · example

  • 4Bill of materials

    What fabric, thread, trims and labels, and how many?

    Every component with its spec, placement and quantity, so nothing gets substituted.

  • 5Construction

    Which stitch, which seam finish, where?

    Operation by operation: neck, shoulders, side seams, hems, pockets.

  • 6Revision log

    Which version is the latest?

    Each change after a fit sample is logged, so the factory never sews an old version.

Get a quote for your tech pack How the service works

Industry examples

How good tech packs look across the industry.

Pages made by other designers and studios, shown with their credit and permission. Compare the flats, the measurement tables and the callouts: the same things a factory looks for in yours. Tap a page to see it larger.

Credited industry examples, not GarmentSpec work. Each credit links to the original pin.

Get a quote for your tech pack Order single style · $299

More pages by other designers

Good tech packs look alike: clear, measured, complete.

Four more pages by other designers, credited and linked. They are not our work; they show the same pages done well elsewhere.

Credited pages are linked to their source and shown with permission confirmed 2026-10-01; they are not GarmentSpec work.

Pricing

One flat fee per style, stated before we start.

No hourly billing and no cut of your production. Send the brief, we confirm the tier and the price by email before any work starts.

In every tier

  • Annotated technical flats for every view
  • Graded points of measure with tolerances
  • Bill of materials and construction notes
  • 2–3 revision rounds, one PDF that is yours

  • Single style Most common

    $299per style

    One garment, fully specced from your sample or a clear reference.

    • 3–5 working days
    • 2–3 revision rounds included
    Order single style · $299

  • Collection, 3+ styles

    $249per style, 3+

    Three or more styles specced together, with the same construction language and grading held across the set.

    • Timeline confirmed with the quote
    • 2–3 revision rounds included
    Order a collection · $249/style

  • From concept

    $499per style

    No sample yet. We develop the construction from your sketch, reference photo or idea, then spec it.

    • 3–5 working days once the design is settled
    • 2–3 revision rounds included
    Order from concept · $499

Add-ons, only if you need them

  • Rush turnaroundYour style moves to the front of the queue+$120
  • Extra colorwayA second colorway on the same style+$35
  • Extra revision roundAfter the 2–3 included rounds+$70
  • Handoff callA walkthrough with your factory or team+$89
Get a quote for your tech pack

Free quote · Reply within 24h · Not sure which tier? We tell you.

Your brief

Send what you have. We quote the tech pack.

No perfect file needed. Tell us what you are making and we reply within 24 hours with the tier, the price and the timeline, before any work starts.

  • A photo or referenceA garment you like the fit of, or a sketch.
  • Your size rangeBase size and the sizes you plan to sell.
  • Fabric and trims If knownComposition, weight, zips, labels. We fill the gaps.
  • Styles and timelineHow many styles and when your factory needs the file.
Get a quote for your tech pack Order single style · $299

Free quote · Reply within 24h · Flat fee per style · No cut of your production · garmentspec@gmail.com

Submission Successful

The form has been successfully submitted.
